Low Pressure Sodium Lamp / Electronic Ballast / Street Light Fixtures
2007-3-19
source:unknown
clicks:  1319        作者:未知
  • INTRODUCTION:

    The revolutionary creation!! ¨C the development of the low pressure sodium lamp is a revolution among the outdoor lighting field, especially in the solar-energy lighting field. Compare with the ordinary light sources with the same luminous flux and light efficiency, the low pressure sodium lamp could save at least 50% of the electricity-energy. Because the arc tube of the low pressure sodium lamps is sealed inside the glass shells with the high vacuum and the reflection film of the infrared ray, so the lamp¡¯s light efficiency is not almost not affected by the outside environment temperature, its radialization spectrum is pure, smooth, no variedness light, the ray under such wavelength could penetrate through brume easily, if use such low pressure sodium lamp with the high quality electronic ballast, then this low pressure sodium lamp system could be used under the different power condition, especially be suitable for the use on solar-energy street light, tunnel lighting fixtures, and some special area like frigid zone and tableland etc.

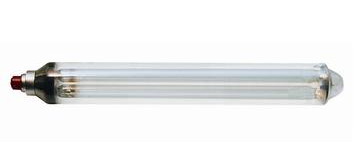

    Low Pressure Sodium Lamps


    The Specification for Low Pressure Sodium Lamp

    Model

    Power(W)

    Base

    Luminous Flux(LM)

    Maximum Diameter(mm)

    Maximum Length(mm)

    Average Life(Hours)

    ND18

    18W

    BY22d

    1800

    54

    216

    18000

    ND35

    35W

    BY22d

    4600

    54

    311

    18000

    ND36

    36W

    BY22d

    5750

    54

    425

    18000

    ND55

    55W

    BY22d

    7600

    54

    425

    18000

    ND66

    66W

    BY22d

    10700

    68

    528

    18000

    ND90

    90W

    BY22d

    12500

    68

    528

    18000

    ND135

    135W

    BY22d

    21500

    68

    775

    18000

    Note:: 18 to 55W low pressure sodium lamps could be used with our XH-1A street light fixture, and 60W to 135W could be used with our XH-1B street light fixture.

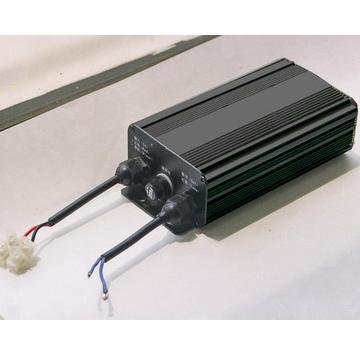

    The Electronic Ballast used for Low Pressure Sodium Lamp


    The Specification for the Electronic Ballast used for Low Pressure Sodium Lamp

    Input Voltage

    Power(W)

    Environment Temperature(C)

    Protection Rate

    DC12V

    18W,35W,36W,55W

    -30C ~ +55C

    IP65

    DC24V

    18W,35W,36W,55W,66W,90W

    -30C ~ +55C

    IP65

    AC220V

    18W,35W,36W,55W,66W,90W,135W

    -30C ~ +55C

    IP65

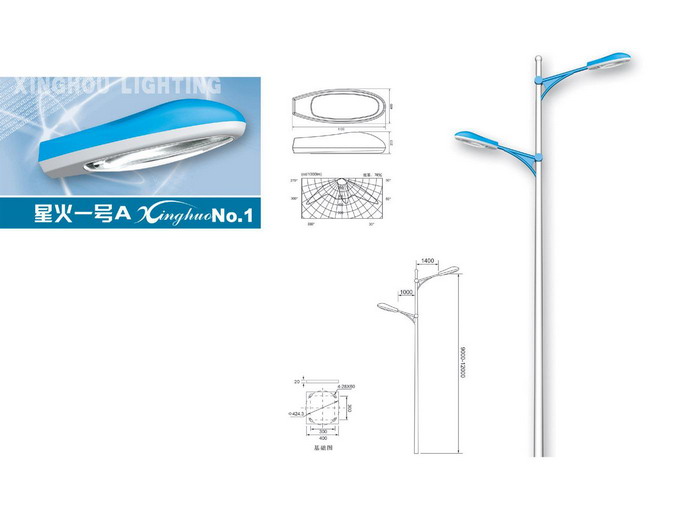

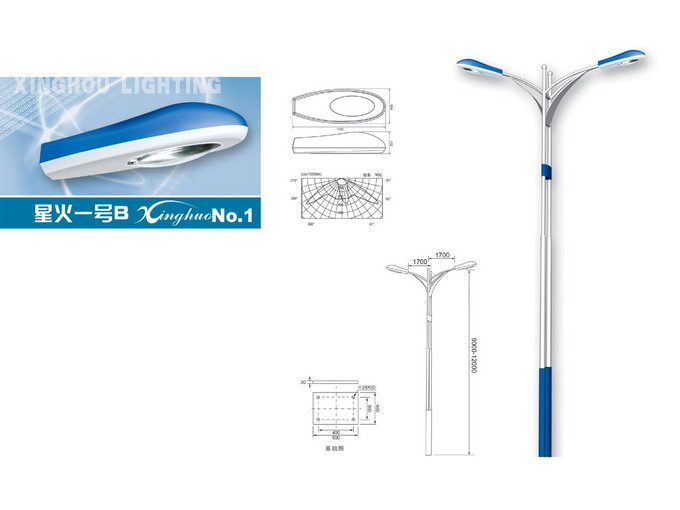

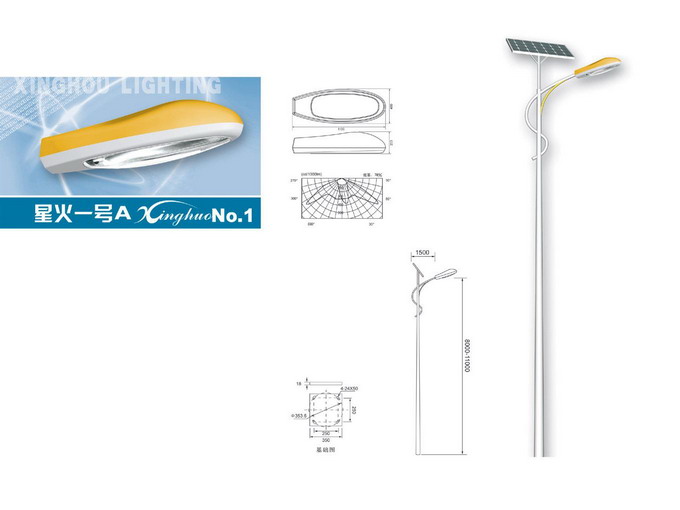

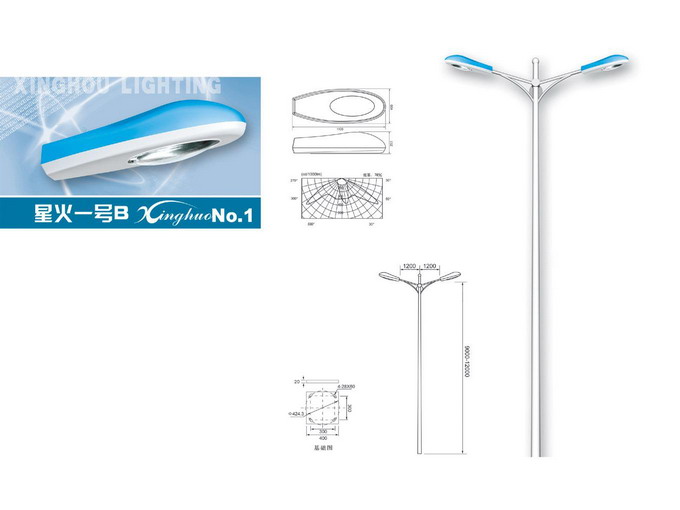

    Street Light Fixtures for Low Pressure Sodium Lamps

    Note: For the low pressure sodium lamps which power is more than 26W, it's best to use our following street lighting fixtures XH-1A/B which are specially designed for low pressure sodium lamps.
